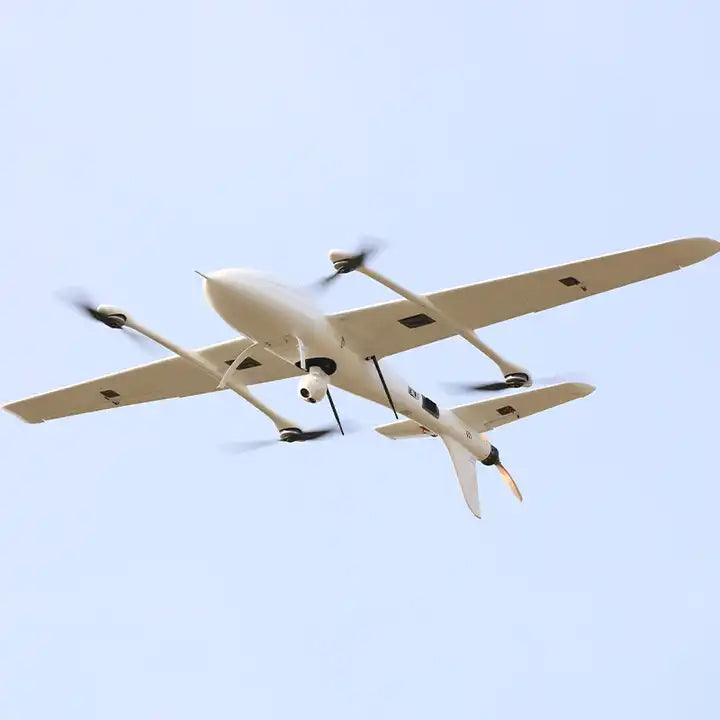

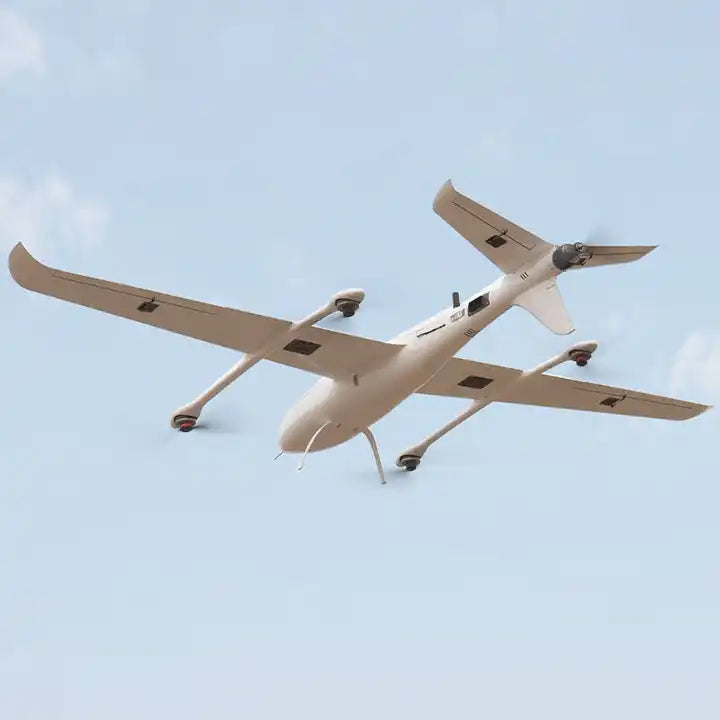

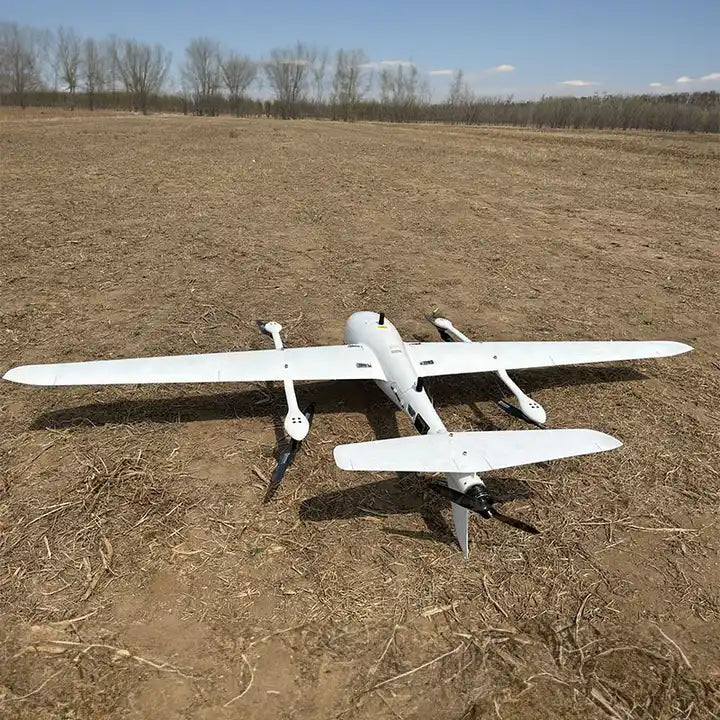

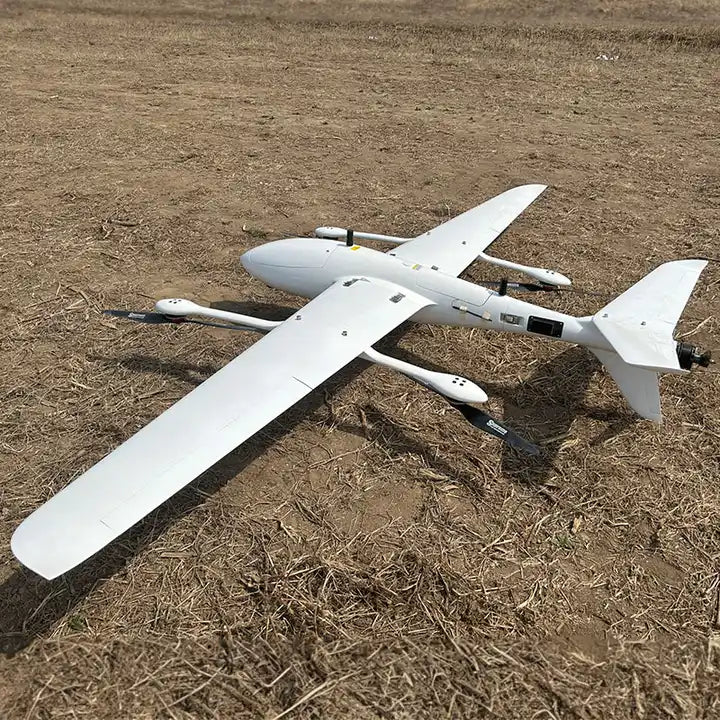

Chengfee AYK-320 Pro New Long Range Fixed Wing VTOL Carbon Fiber Drones UAV Battery Powered Aircraft For Aerial Survey
Description
AYK-320 Pro VTOL is designed for long range inspection, mapping and survey.
-ESC Telemetry, increasing flight stability and safety
Real-time monitoring the working status of motor and ESC，including the temperature of ESC, the voltage, current, and RPM of the motors to ensure the flight safety; Adopting notch filtering technology, filter out shakes and noises to ensure the best effect of PID tuning.
-Dual GPS differential design
Improve positioning accuracy, anti-interference ability and flight stability. No need for compass calibration.
- VTOL/Fixedwing carbon fiber propellers
Better dynamic balance, reducing resonance and vibration.
-Advanced aerodynamic design
The curved design of VTOL arm greatly reduces resistance during the flight; the upturned tail wing is designed to reduce induced drag from the tail airflow; the long, narrow fuselage and T-tail design ensure a large climb and descent angle.
-Redundant airspeed measurement system
Adopt latest DLVR air speedometer and SKYE intelligent airspeed sensor for high precision airspeed measuring. The integrated heating system can automatically heat according to the ambient temperature and humidity, avoiding data errors caused by pitot tubes freezing, and greatly improving the aircraft reliability.
Adopt latest DLVR air speedometer and SKYE intelligent airspeed sensor for high precision airspeed measuring. The integrated heating system can automatically heat according to the ambient temperature and humidity, avoiding data errors caused by pitot tubes freezing, and greatly improving the aircraft reliability.
-ESC Telemetry, increasing flight stability and safety
Real-time monitoring the working status of motor and ESC，including the temperature of ESC, the voltage, current, and RPM of the motors to ensure the flight safety; Adopting notch filtering technology, filter out shakes and noises to ensure the best effect of PID tuning.
-Dual GPS differential design
Improve positioning accuracy, anti-interference ability and flight stability. No need for compass calibration.
- VTOL/Fixedwing carbon fiber propellers
Better dynamic balance, reducing resonance and vibration.
-Advanced aerodynamic design
The curved design of VTOL arm greatly reduces resistance during the flight; the upturned tail wing is designed to reduce induced drag from the tail airflow; the long, narrow fuselage and T-tail design ensure a large climb and descent angle.
|
Max. take-off weight
|
24kg
|
|
Operating weight
|
21.5kg
|
|
Stall speed
|
17m/s
|
|
Cruising speed
|
21m/s
|
|
Max climb angle
|
15°
|
|
Max climb speed
|
5.6m/s
|
|
Max descent angle
|
25°
|
|
Max descent speed
|
9.6m/s
|
|
Application
|
inspection, mapping, survey
|
Chengfee AYK-320 Pro New Long Range Fixed Wing VTOL Carbon Fiber Drones UAV Battery Powered Aircraft For Aerial Survey
$8,059.00
